SPECIFICATIONS

Brand Name: NoEnName_Null

Design: Brushless

High-concerned chemical: None

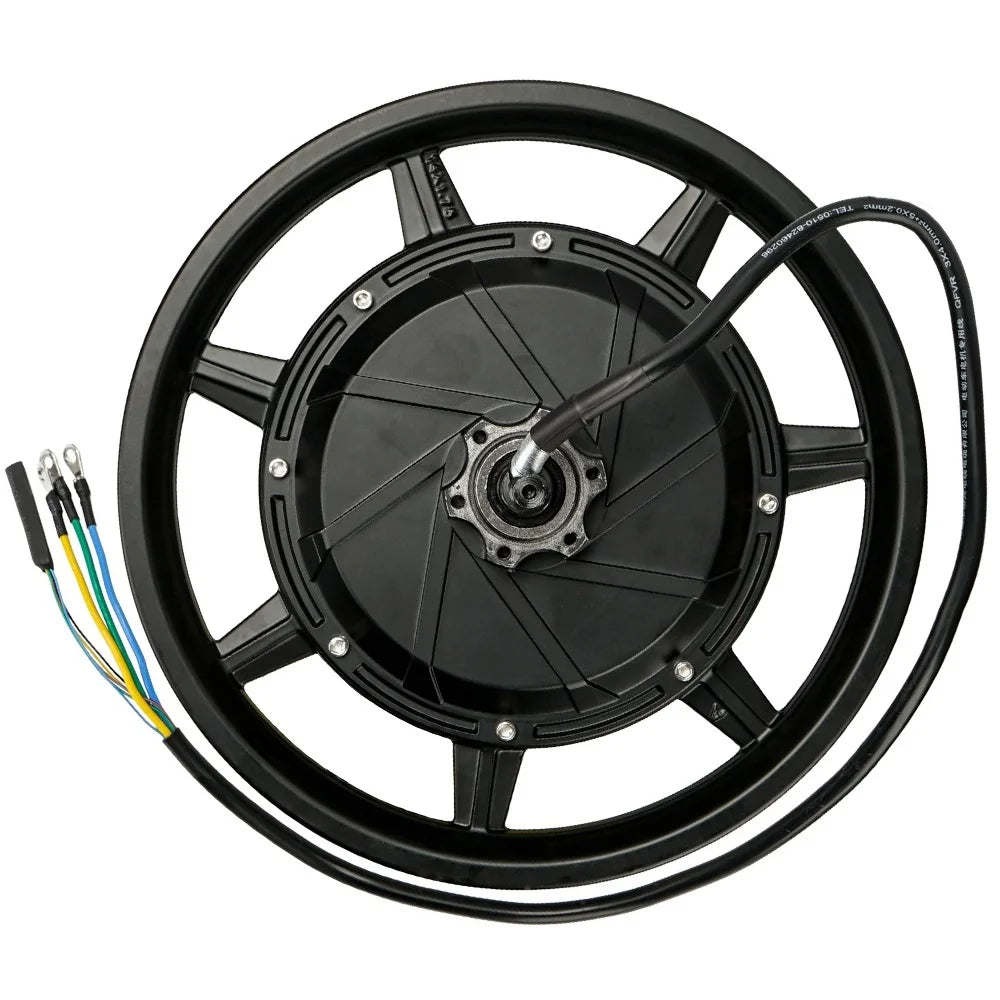

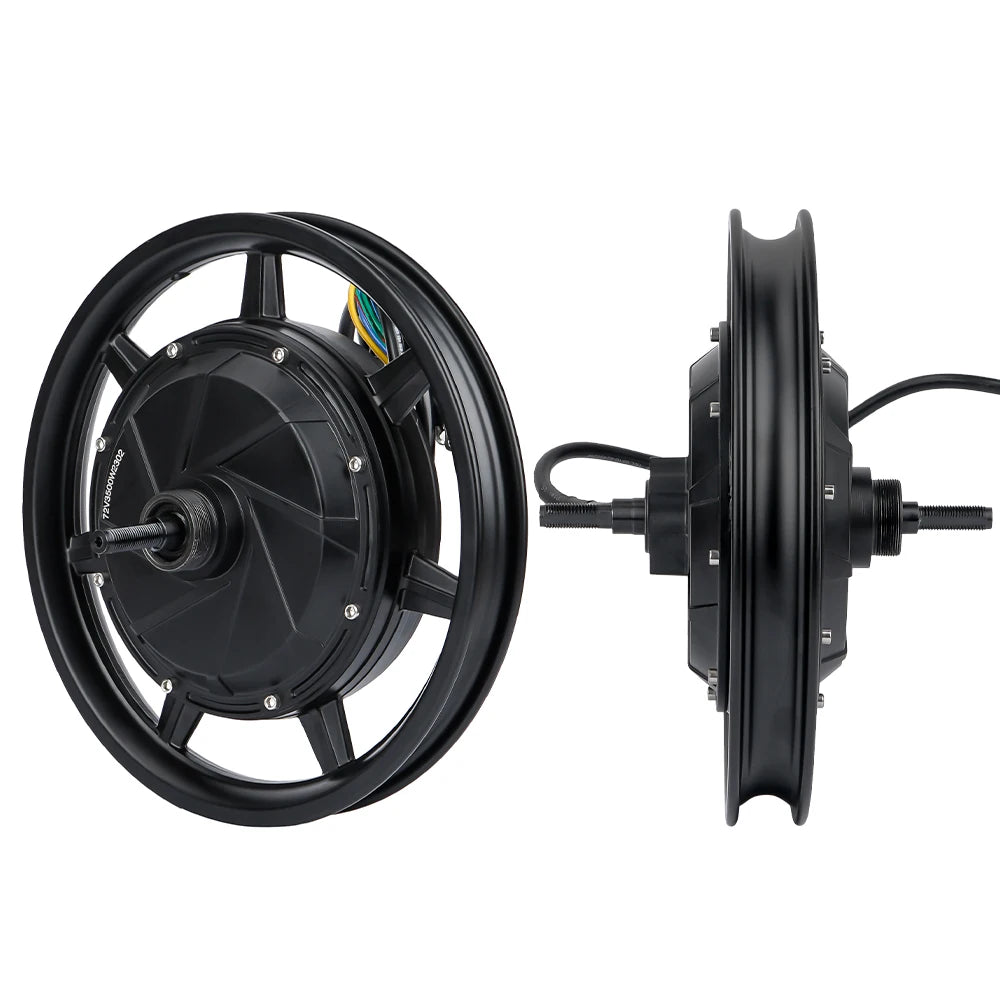

Motor: Brushless Non-gear Hub Motor

Origin: Mainland China

Voltage: 48V

Wattage: > 400w

Model: 14 inches

Rated Voltage: 48 (V)/60(V)/72(V)

Rated Power: 2000W/3000W/3500W

Open Size: 135mm

Rated Speed: 1200 (rpm)

Speed:120km/h

Main Scope of Application: Electric scooter

Product Type: Brushless DC Motor

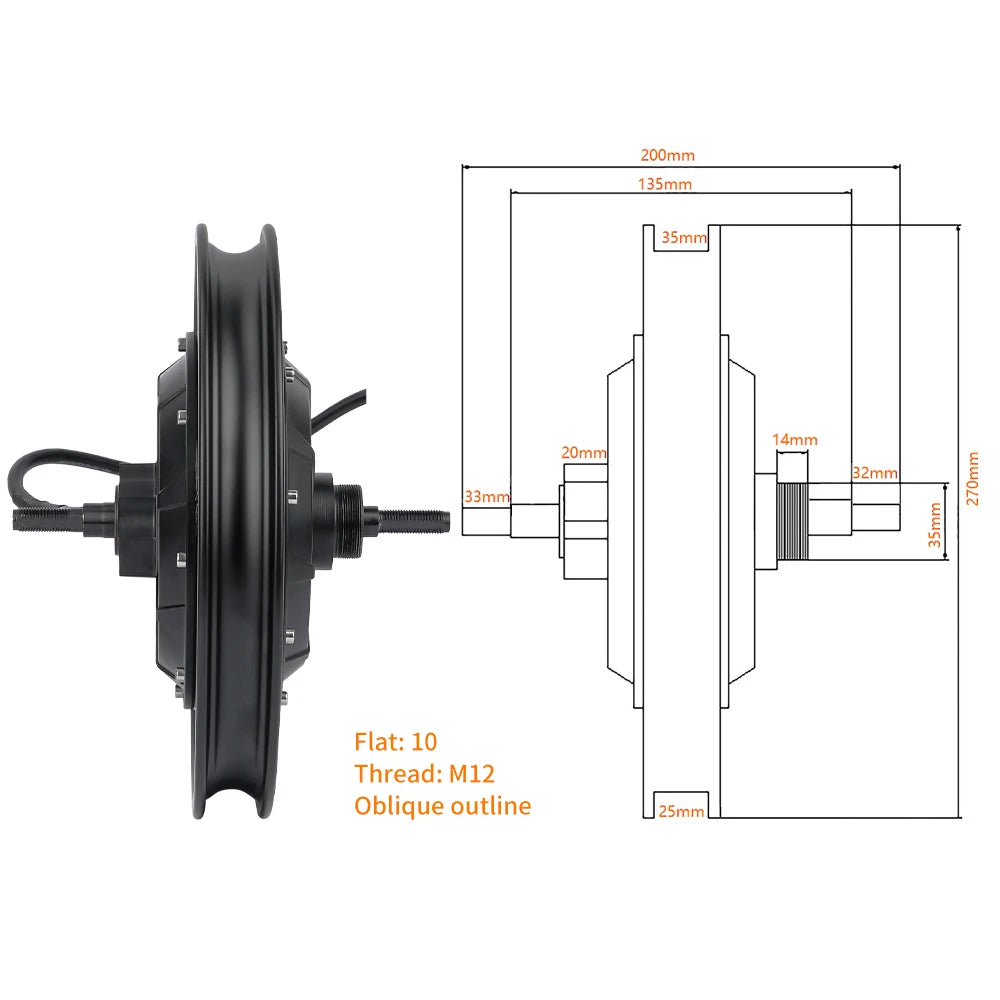

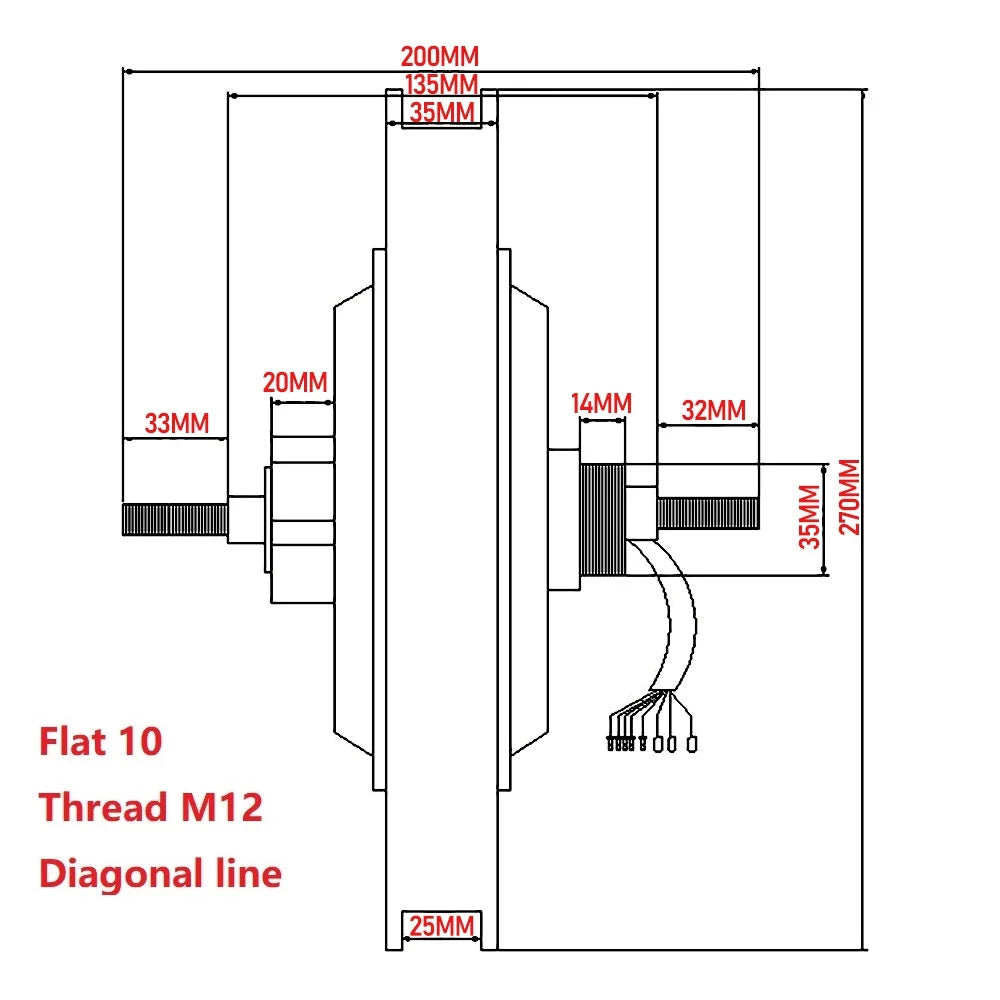

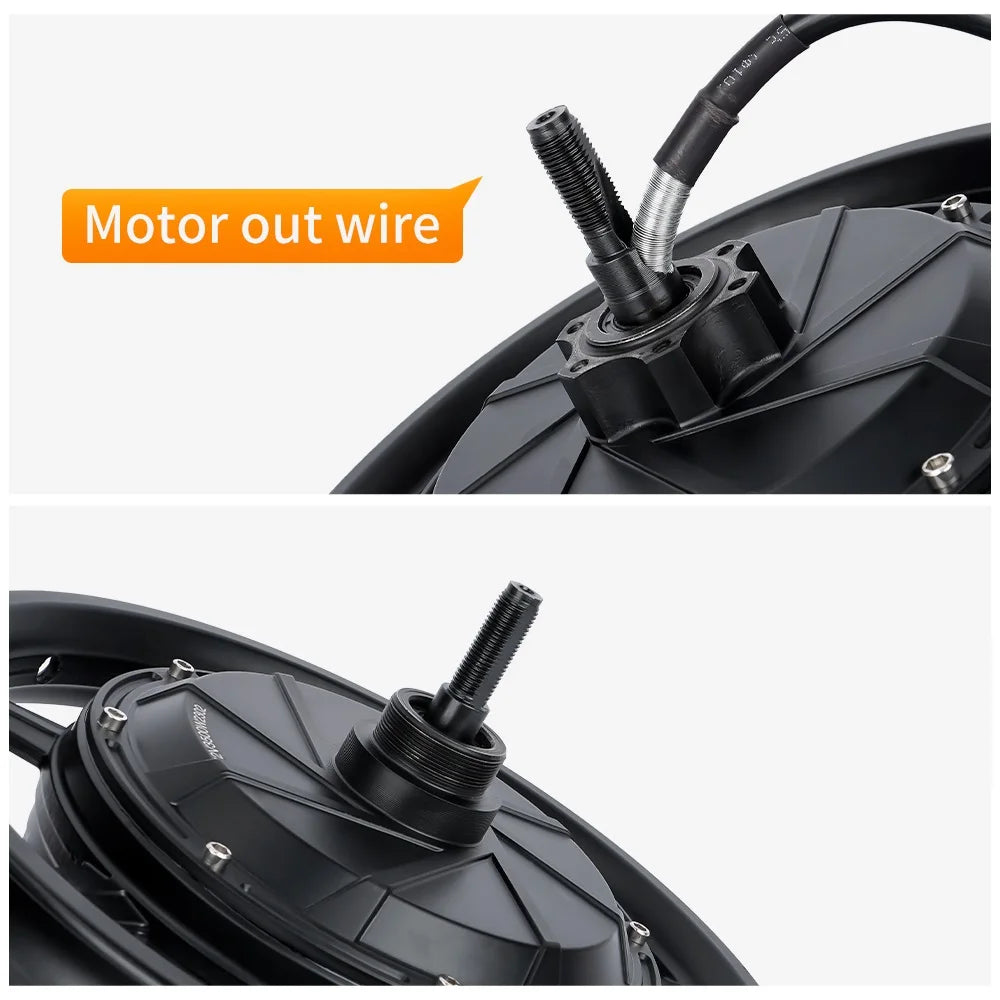

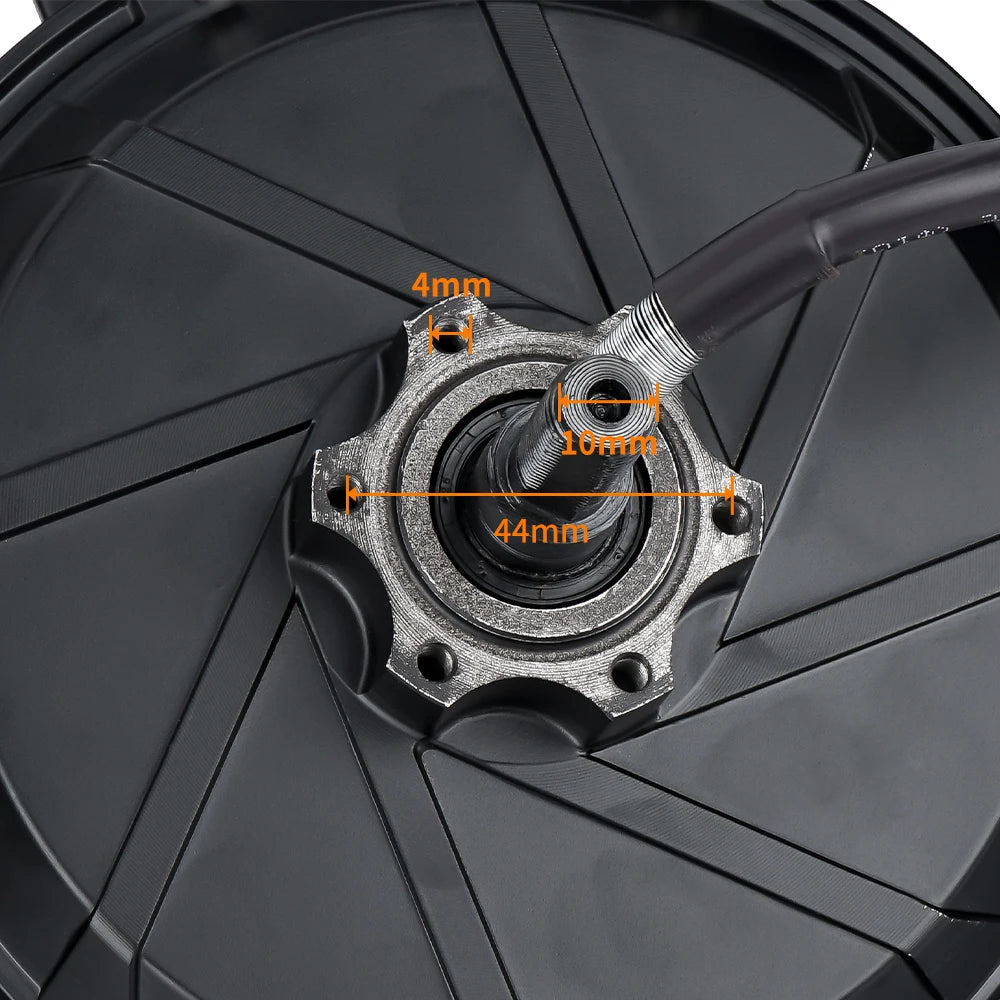

Flat shaft 10mm

Thread shaft 12mm

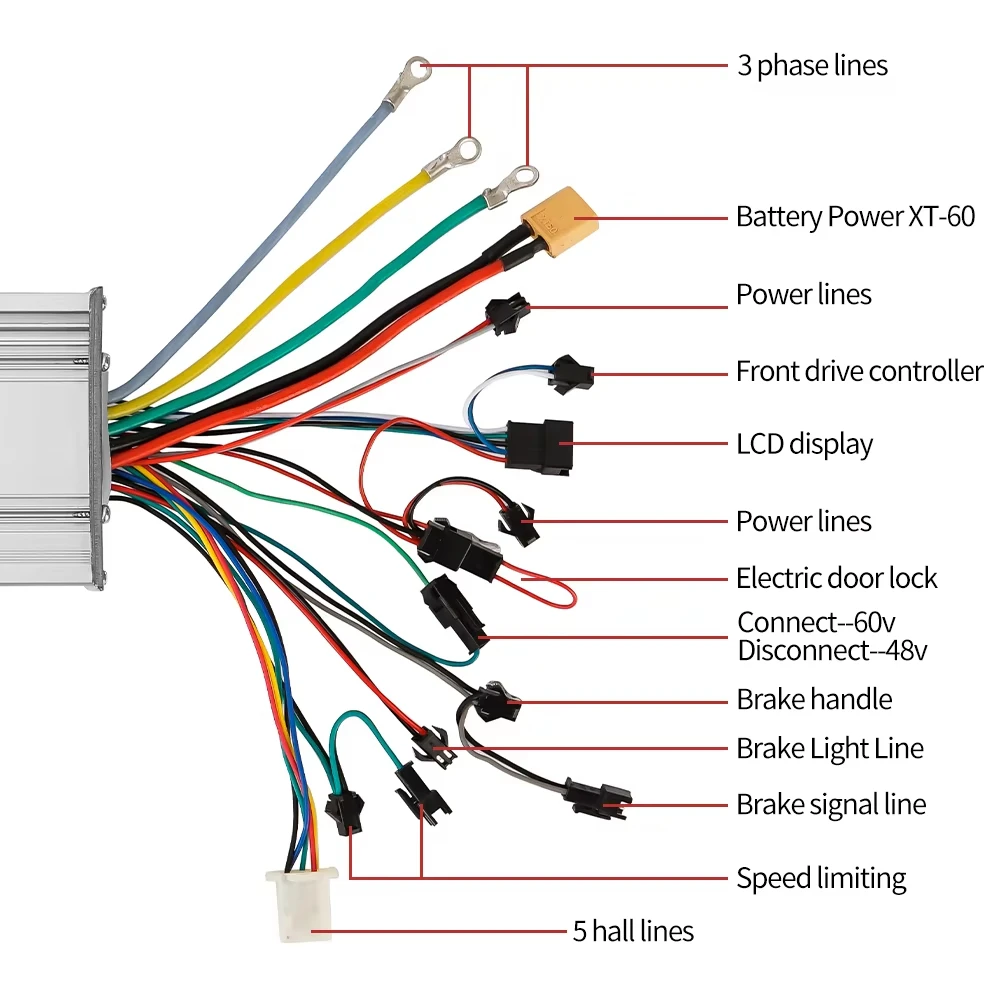

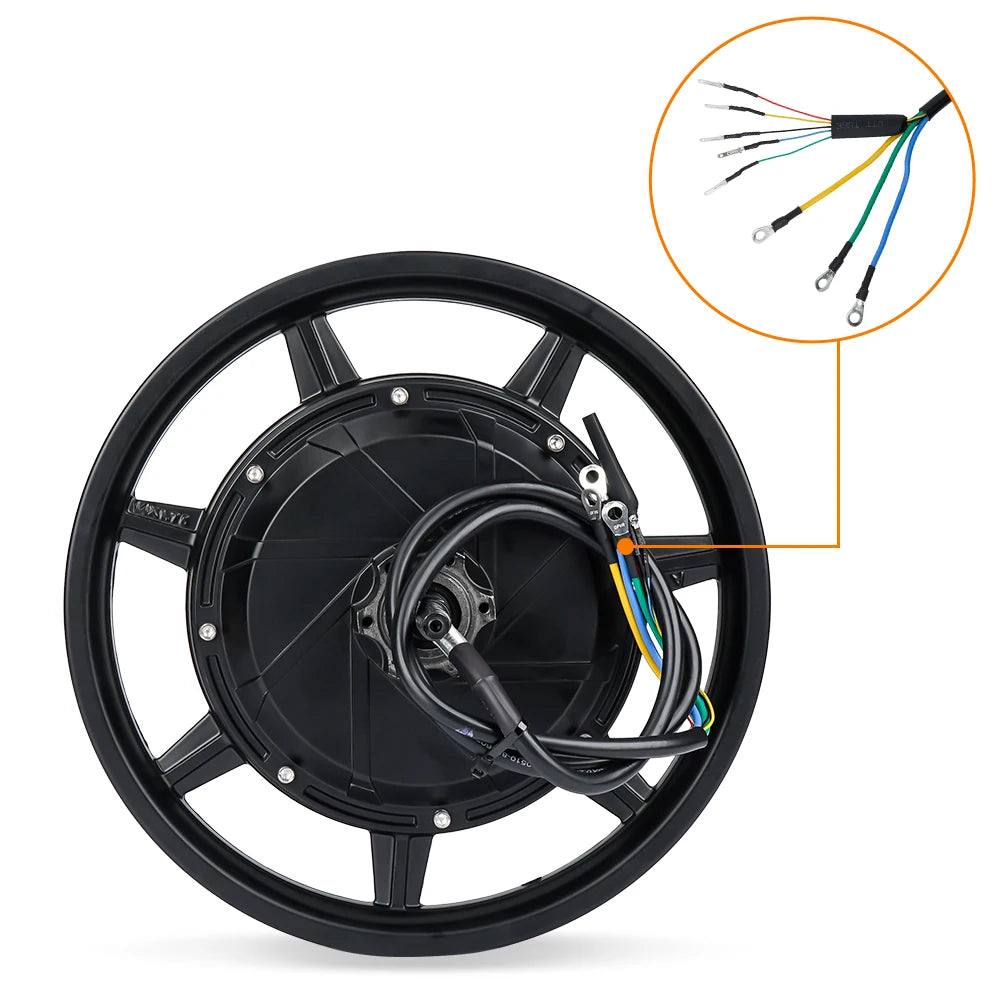

Wire out 3phase and 5 hall sensor

Motor was called 14" cause its tyre is 14", not rim size 14" (all the motor inch size in our store was called by tyre size)

For this motor, its rim diameter is 270mm, 10.6"

what's the choice of 60v 72v mean?

It means the motor is wide voltage design, it could accept 60v or 72v battery.

The controller in the choice is also wide voltage design. It could work with 60v or 72v battery in 60v 72v choice.

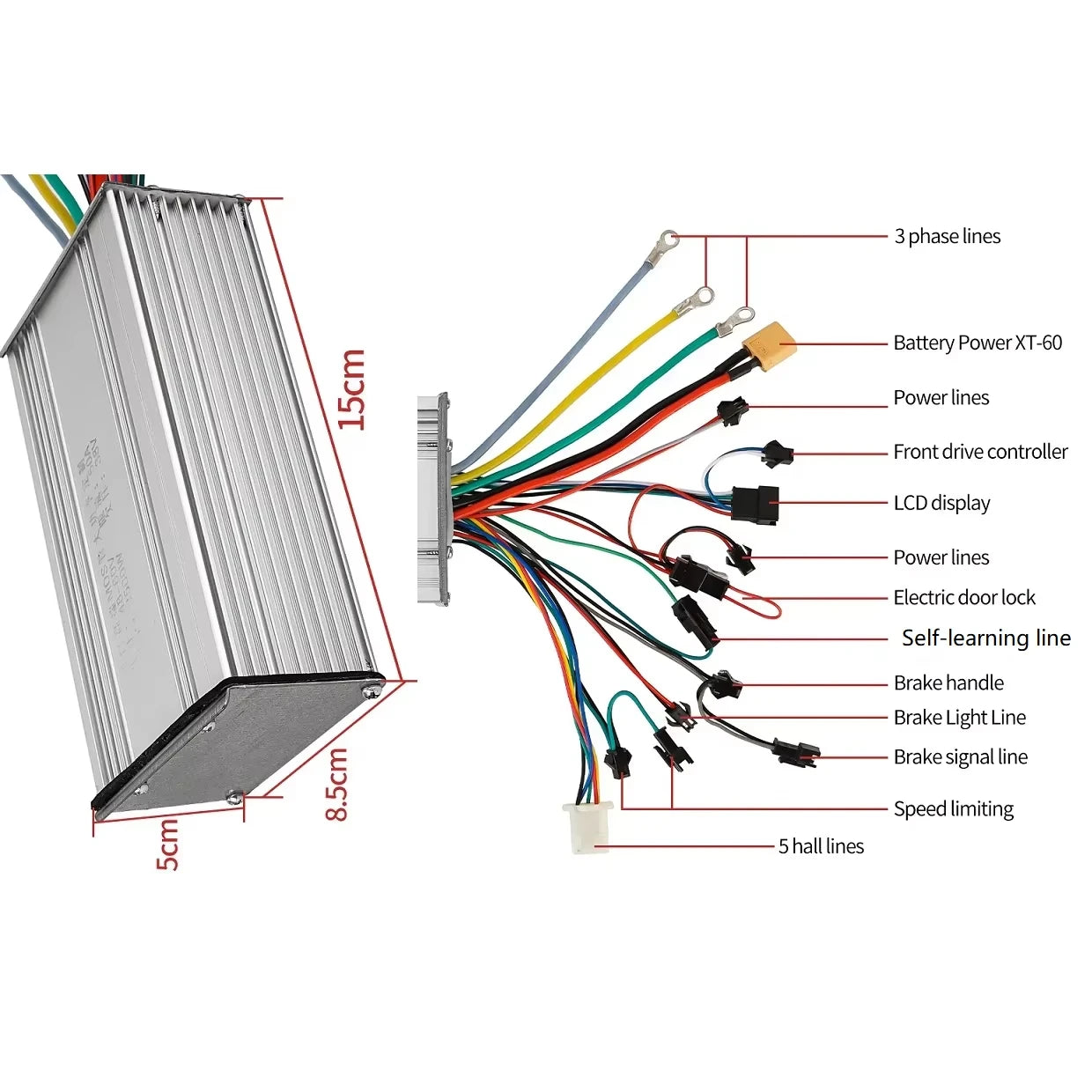

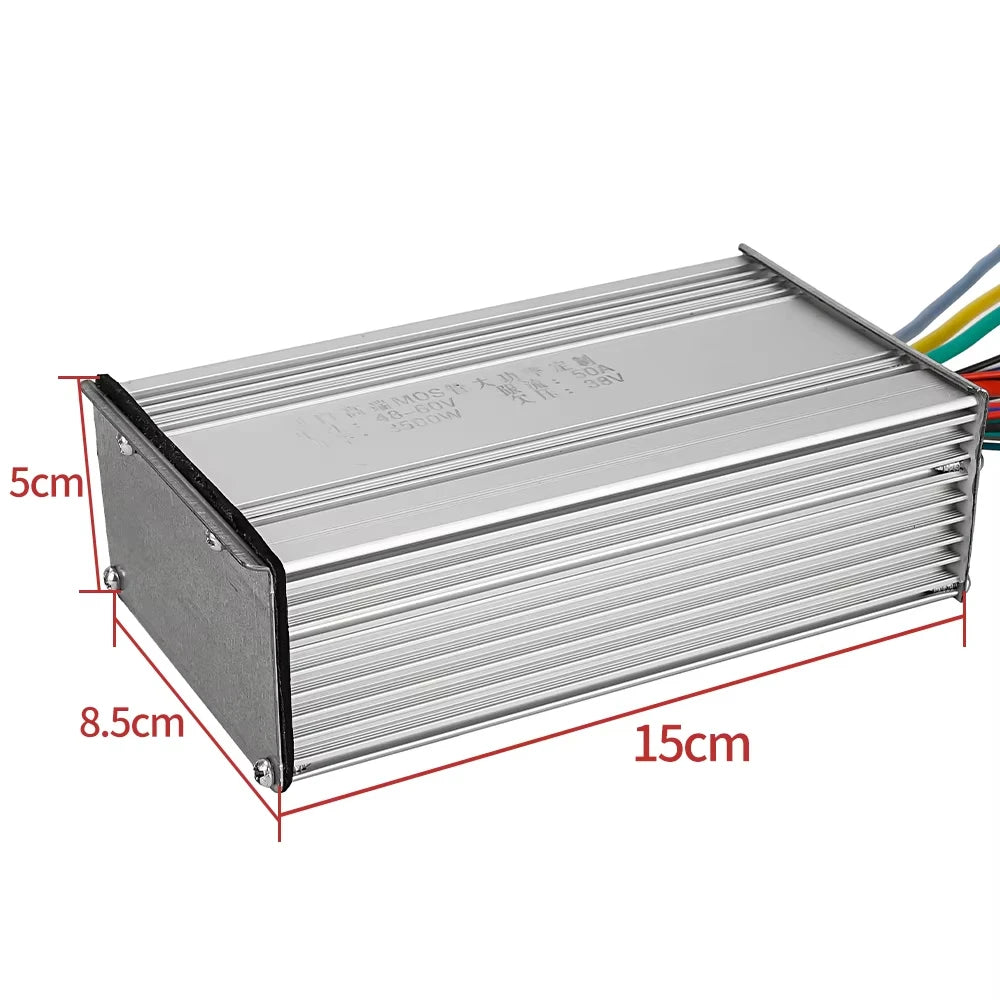

For 48v 1500w, controller is 48v 60v 12MOS max current 45A, controller box size 121*73*40MM

For 60v 2000w, 60v 72v 3500w controller is 60v 72v 12MOS max current 50A, controller box size 121*73*40MM

Pcaking List:

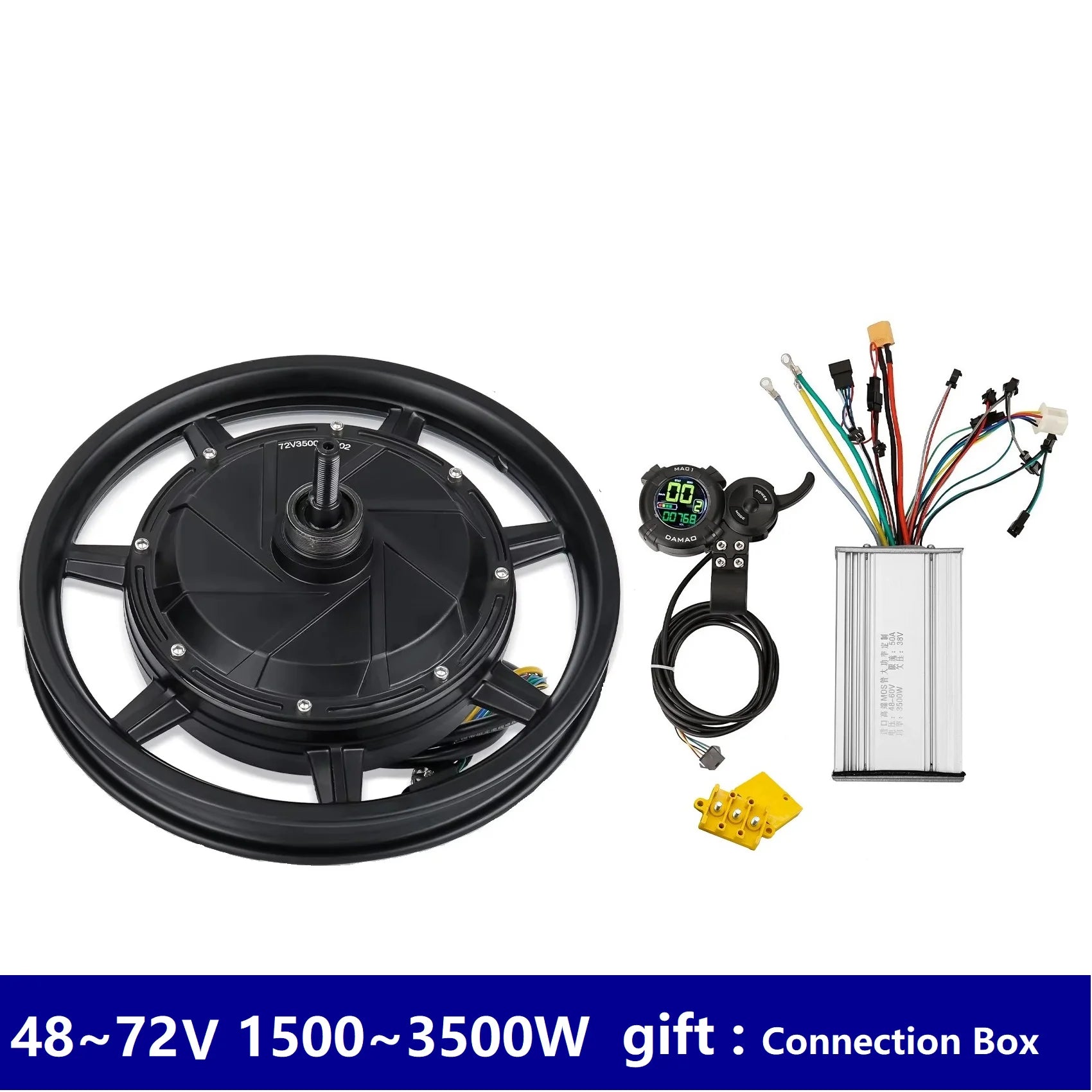

1*motor

1*controller

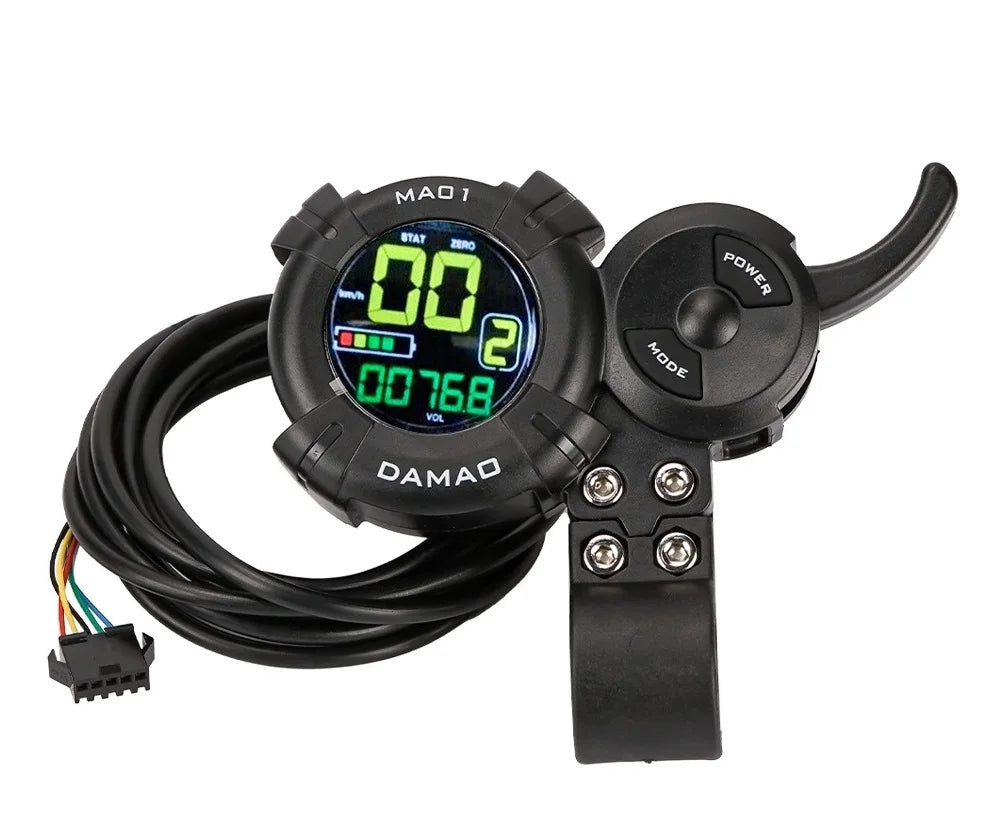

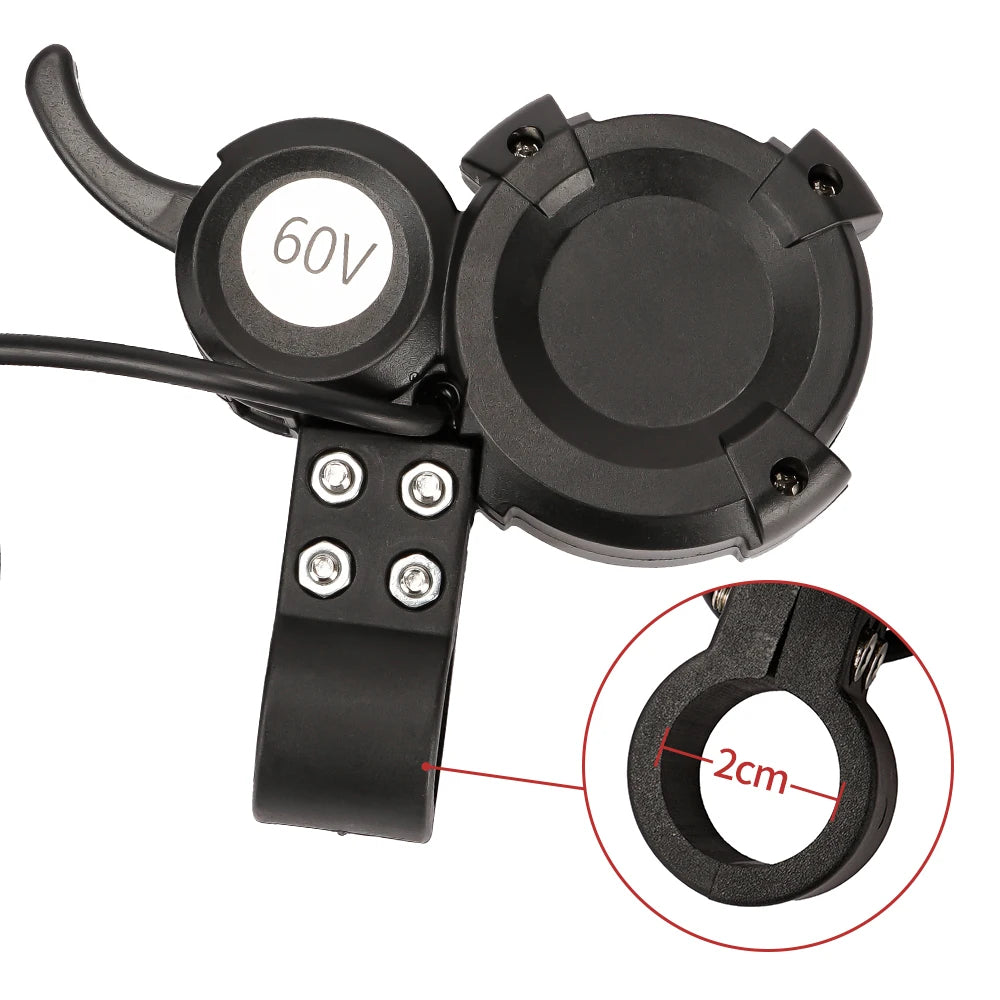

1*LCD

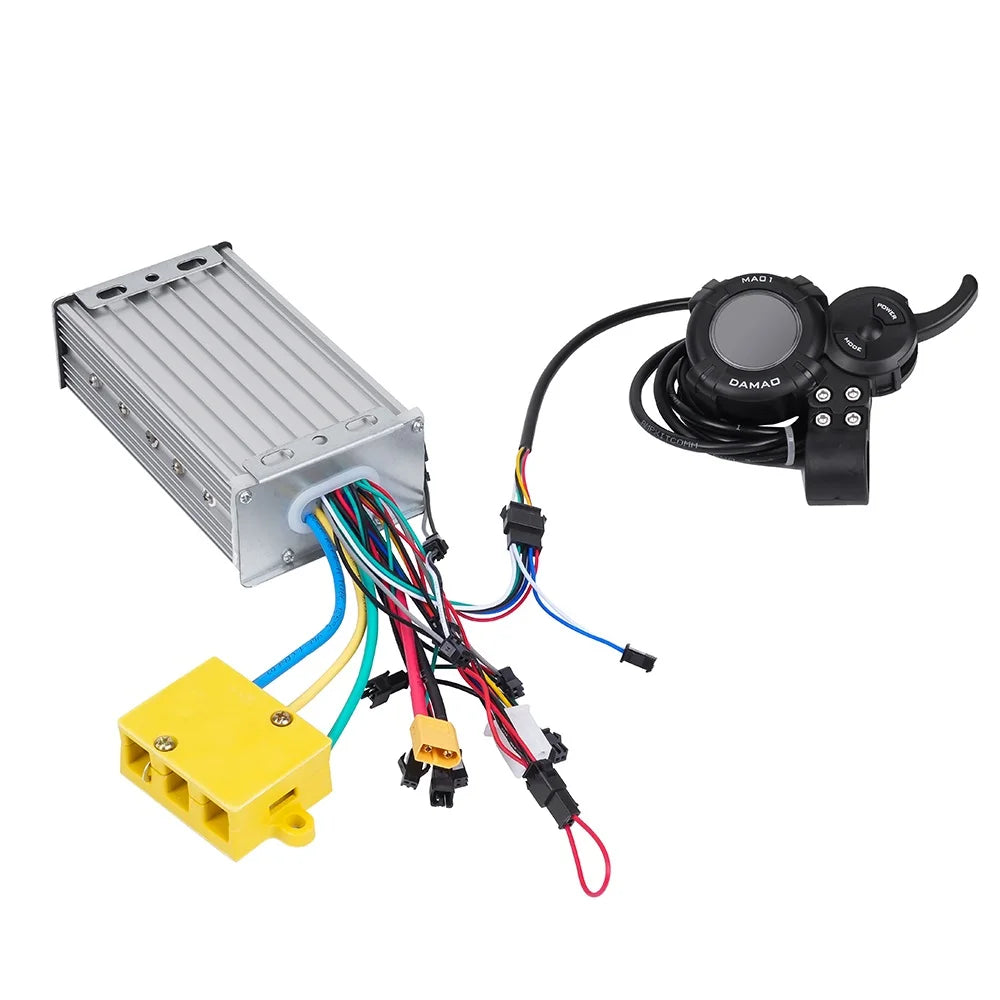

1*gift( Connection Box )

How to setting LCD display:

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest;

P02: mileage unit, 0: KM;

P03: Voltage level: 24V, 36V, 48V, default 36V;

P04: sleep time: 0, no sleep; other numbers are sleep time, range: 1-60; unit minute;

P05: Power assist gear: 0: 3rd gear mode;

P06: wheel diameter: unit, inch; accuracy: 0.1;

P07: Speed measuring magnetic steel number: range: 1-100;

P08: Speed limit: range 0-100km/h, 100 means no speed limit;

     1. Communication state (controller control): the driving speed is maintained at the set value,

6

     Error: ±1km/h; (both assist and handle speed limit)

Note: The value here is based on kilometers. When the unit setting is converted from kilometers to miles, the speed value on the display interface will automatically convert to the correct mile value, but the speed limit value data set in this menu under the mile interface No conversion, inconsistent with the actual displayed mile speed limit value; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start;

P10: Driving mode setting

    0: Power-assisted drive (the amount of power output is determined by the power-assisted gear, and the handle is invalid at this time).

    1 : Electric drive (driven by turning the handle, at this time the power assist gear is invalid).

    2: Power assist drive and electric drive coexist at the same time (the electric drive is invalid in zero-start state).

P11: Assist sensitivity setting 1-24

P12: Starting strength setting 0-5

P13: Power-assisted magnetic steel plate type setting 5, 8, 12 grains of magnetic steel three types

P14: Controller current limit setting Default 12A Range: 1-20A

P15: controller undervoltage value

P17: Automatic cruise selection,

   0 without automatic cruise,

   1 with automatic cruise.

P18: ABS brake strength selection, generally adjustable from 0 to 3 levels

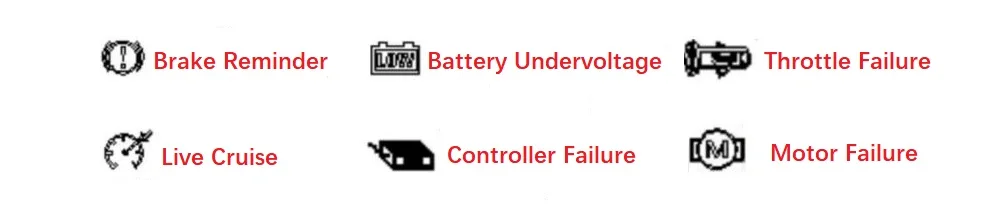

Fault code: Fault status Remarks

0. Normal state

1. Reserved

2. brake

3. Power sensor failure (riding sign)

4.6KM/H cruise

5. Real-time cruise is not realized here

6. Battery undervoltage

7. Motor failure

8. Handlebar failure

9. Controller failure

10. Communication reception failure

11. Communication sending failure

12. BMS communication failure

13. Headlight failure

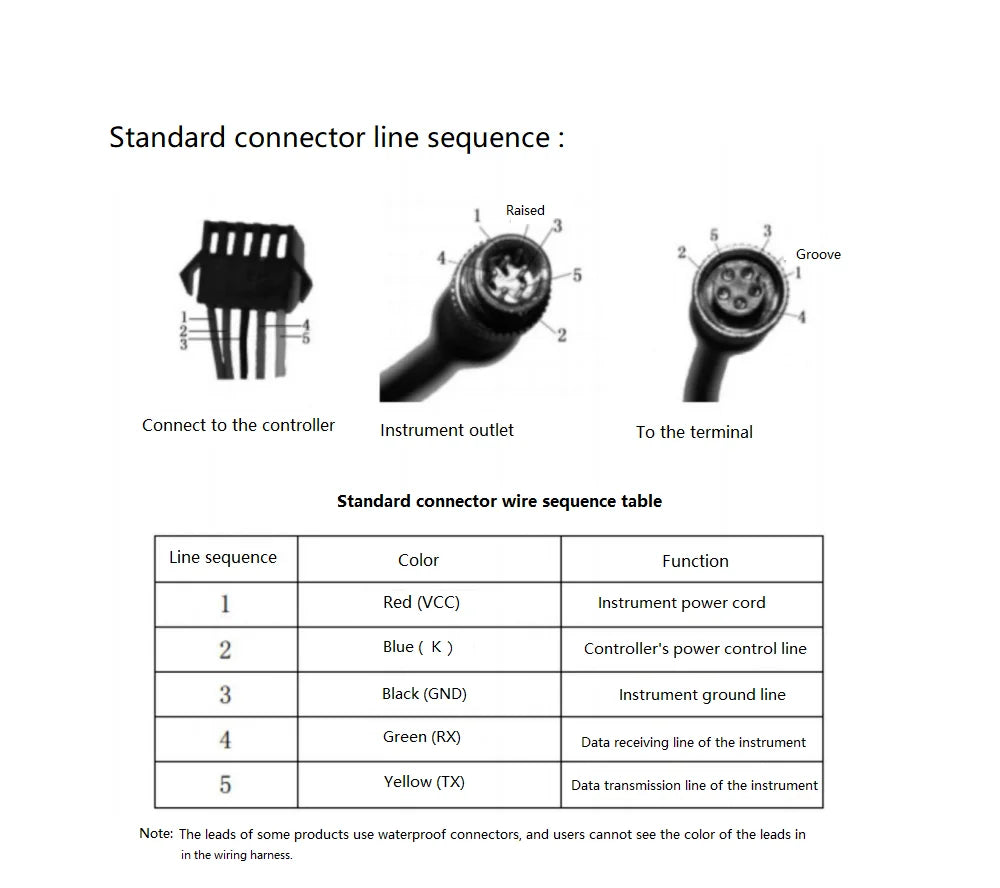

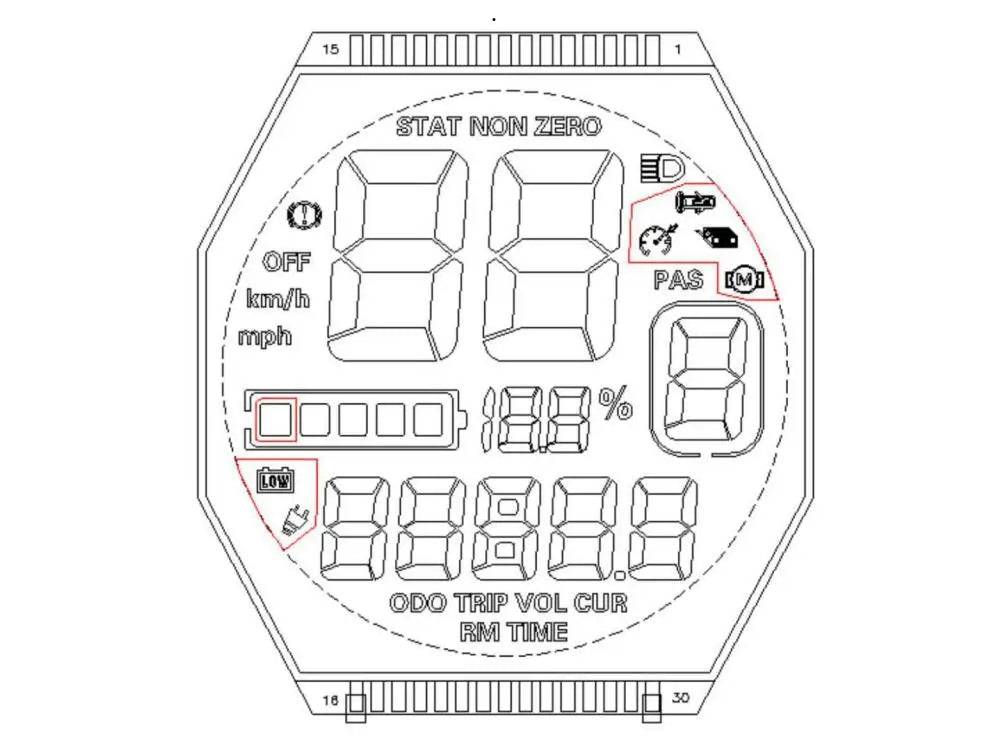

The LCD display shows

ODO: Total mileage

TRIP: Single mileage

VOL: Digital voltage

CUR: Digital current

RM (requires battery protection board software support): Remaining mileage

TIME: Running time

ERRO: Fault code
