SPECIFICATIONS

Blade tilt: 0-90°

Brand Name: Hualong

Control system: Italian CNC

Core Components: Motor,Bearing,Gear,Gearbox,CNC system,Computer,Touch screen,Servo driver,Worm reducer,Linear guide,Helical gear rack,Hydraulic pump

Cutting head rotation: 0-360°

Cutting thickness (max): 140mm

Dimension(L*W*H): 5700x3260x2765

Guide Rail: Hiwin Linear Guide

Key Selling Points: Multifunctional

Lubrication: automatic

Machinery Test Report: Provided

Max. diameter of blade: 500 mm

Nesting: manual or automatic

Place of Origin: China

Power(W): 18 KW

Type: Stone Cutting Machine

Use: Stone slab processing

Video outgoing-inspection: Provided

Warranty: 1 Year

Weight: 5400 kg

Worktable tilt: 0-85°

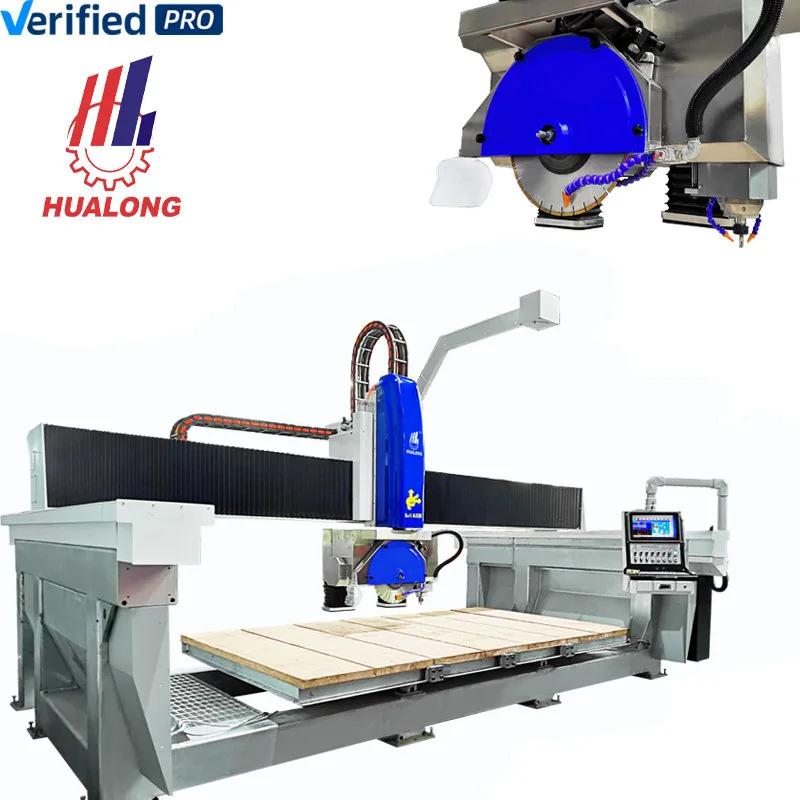

HKNC-550 plus 5+1 Axis Bridg Saw

US $46500.00 - 49500.00/ Set

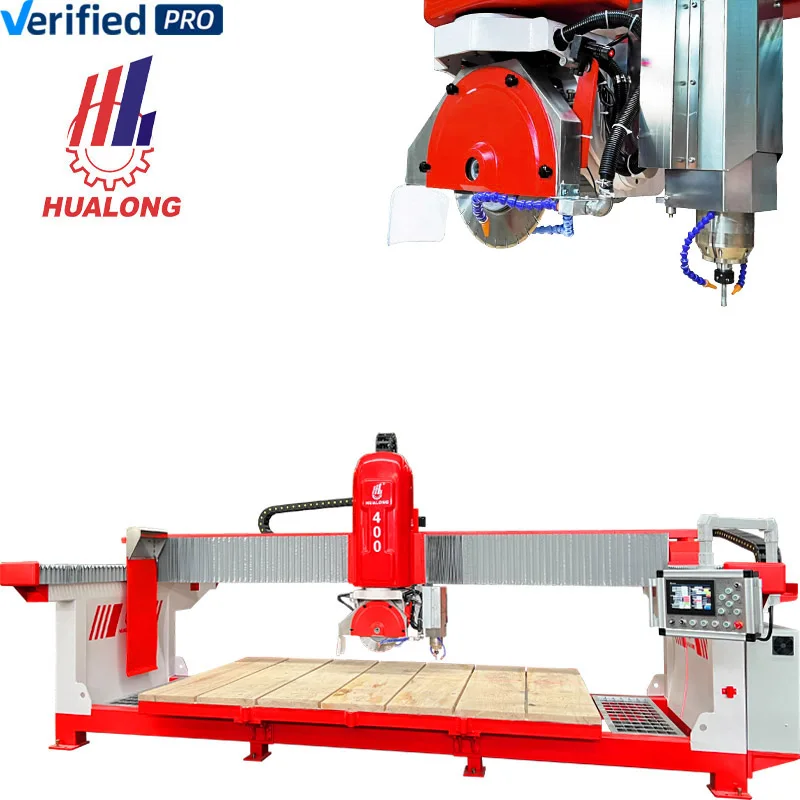

HLSQ-400+ 4 Asix Bridge Saw

US $27500.00 - 29500.00/ Set

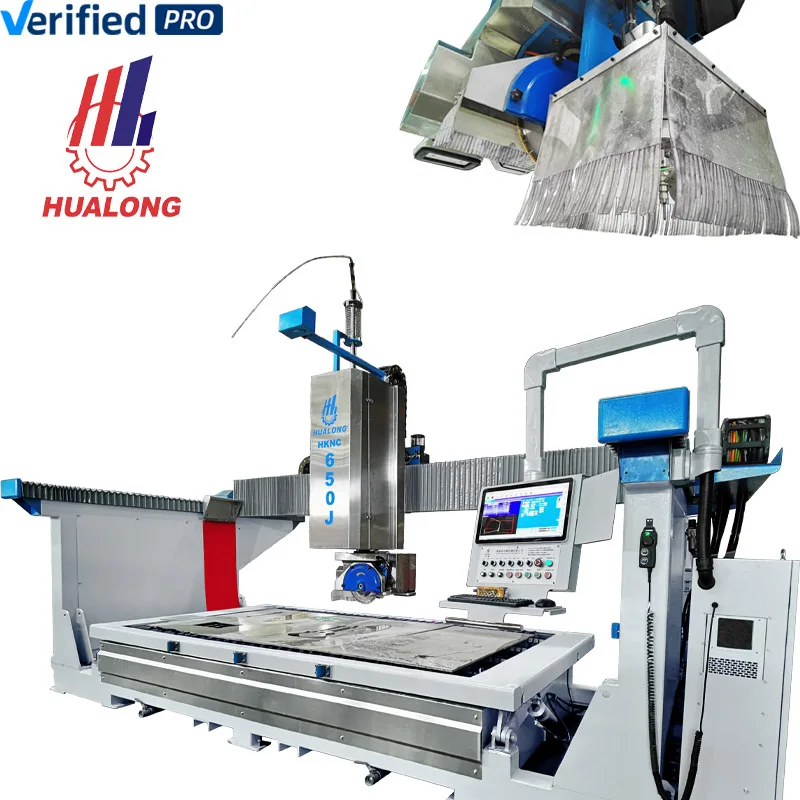

HKNC-650J 5 Axis CNC Sawjet

US $90000.00 - 120000.00/ Set

CNC Stone Machine

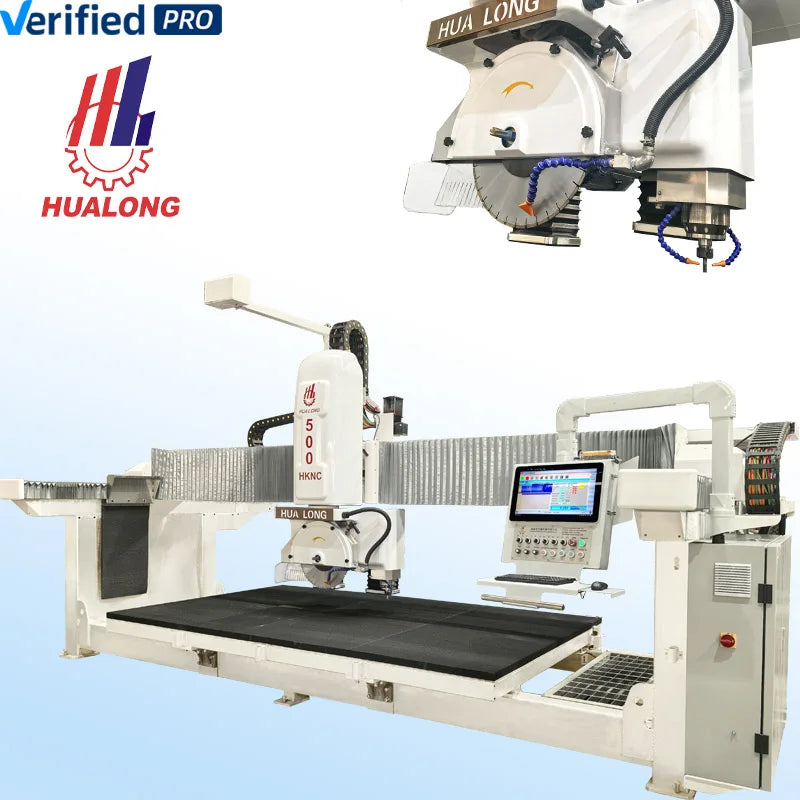

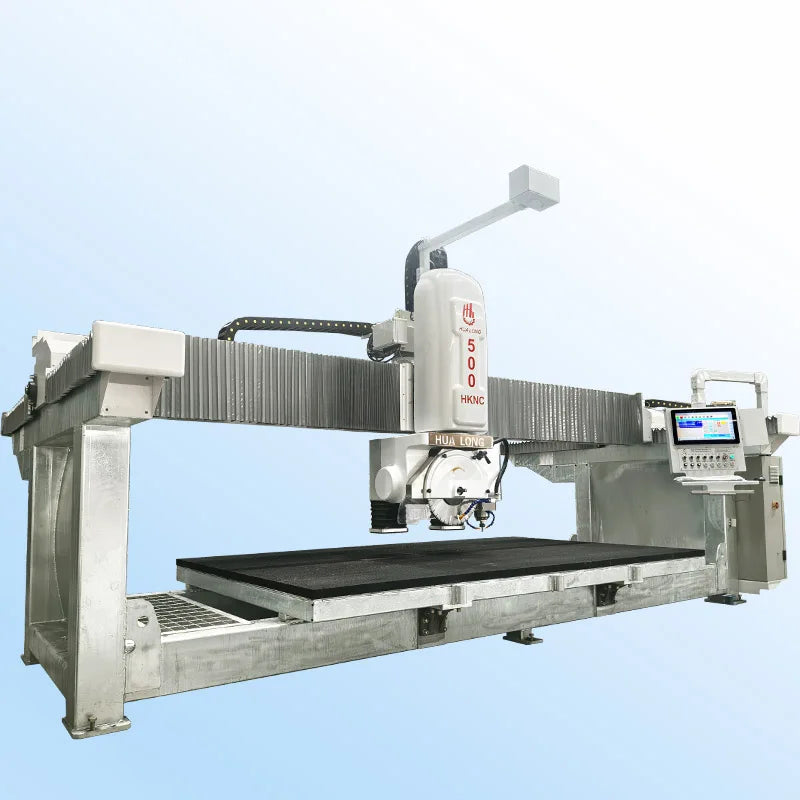

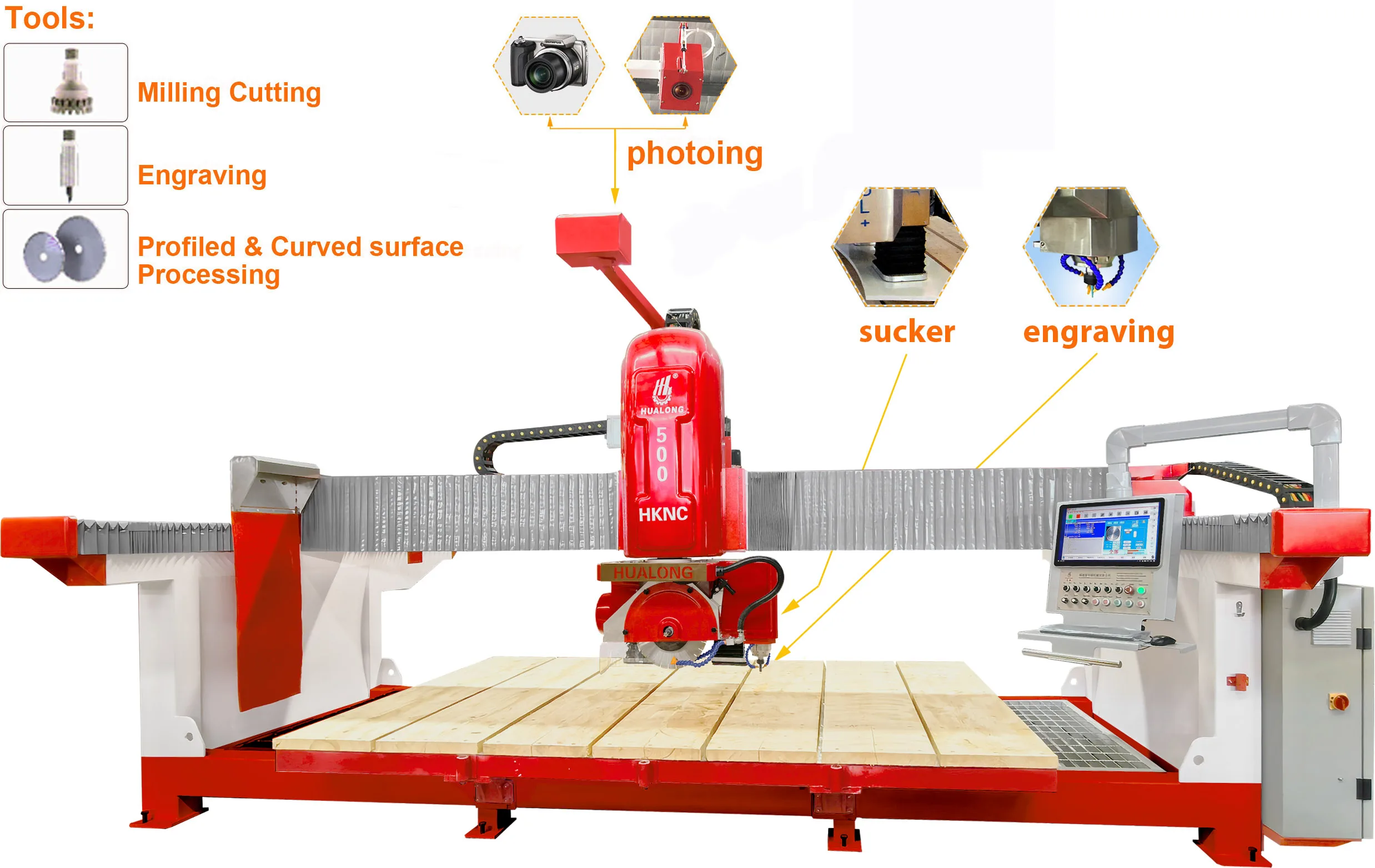

HKNC-500+ with 5 axis interpolation controlled, is a multifunctional CNC stone cutting, shaping and engraving machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.

Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving

Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease. HKNC-500 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.

Main Features

1) 5 axis lnterpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.

3) Blade can rotate 0°-360° and tilt 90° for any direction's and any angle's chamfering cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.

5) Manual cuts available for simple machining.

6) Nesting manual / automatic to optimize slab surface usage

7) Optional - Sole engraving module with electric spindle exellent for 2D carving.

8) Optional - Vacumm manipulator for workpieces handling.

9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.

11) Optional - Slab thickness probe

12) Optional - Tool measuring system

TECHNICAL  DATA FOR HKNC-500
Diameter of saw blade	ø400-ø500	mm
Dimension of working platform	3300x2000	mm
Max. cutting length	3300	mm
Max. cutting thickness	140	mm
Max. lifting stroke	250	mm
Max. lifting weight by sunction cups	200	kg
Power of main motor	11	kw
Power of cutter frame reciproctating motor	2	kw
Power of crossbeam shifting motor	1.1	kw
Power of hydraulic station motor	2.2	kw
Power of lifting motor	0.85	kw
Gross power	16	kw
Water consumption	2	m3/h
Gross weight	5400	kg
Dimensions (L x W x H)	5700x3260x2765	mm

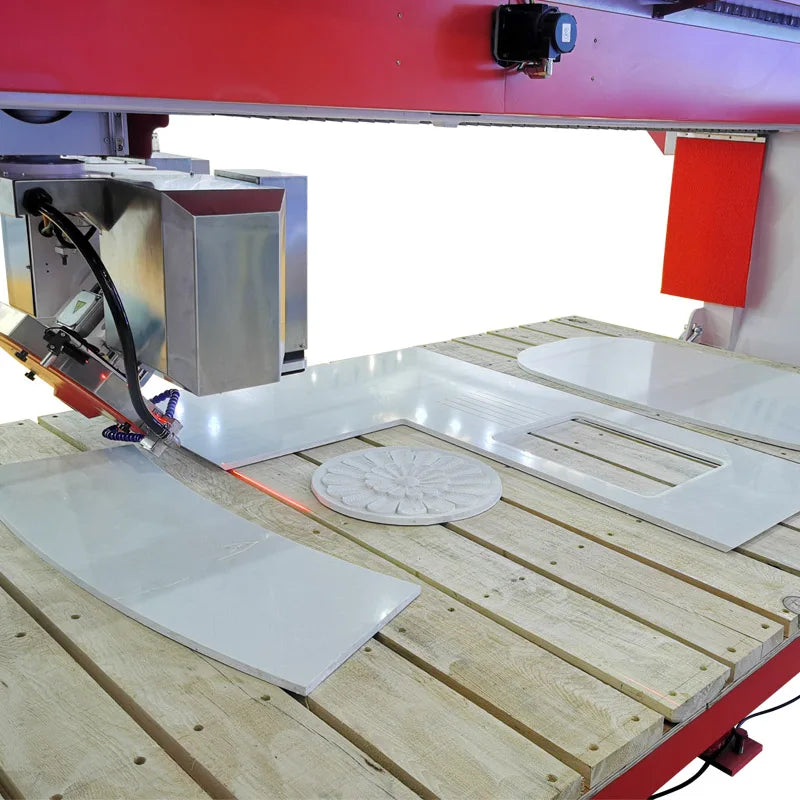

Application Fileds:

* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades

Control system  -- CNC

Brand: ESA

Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.

Software - Pegasus CAD/CAM

Brand: Pegasus

Original: Italy

* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.

Slab Image Capture （Optional)

The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.

Digital Servomotor

Brand: ESA

Original: Italy

A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,

creates a reliable controlling power for X, Y, Z and C axises

Sole Engraving Module (Optional)

* Type: electric spindle

* Rotating speed: 0-24000 rpm
* Power: 5.5 kw

Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster,
or make curve cutting, corner cutting by milling much faster too.

Blade Presetting Unit (optional)

Automatically measuring blade diameter and diamond tool

Slab Thickness Detector (optional)

Origin: China

System to automatically detect the thickness of the slab.

Rubber Platform (Optional)

Waterproof and no deformation

Safeguard Door (Optional)

Safe light curtain is recommended for preventing work-related injuries.

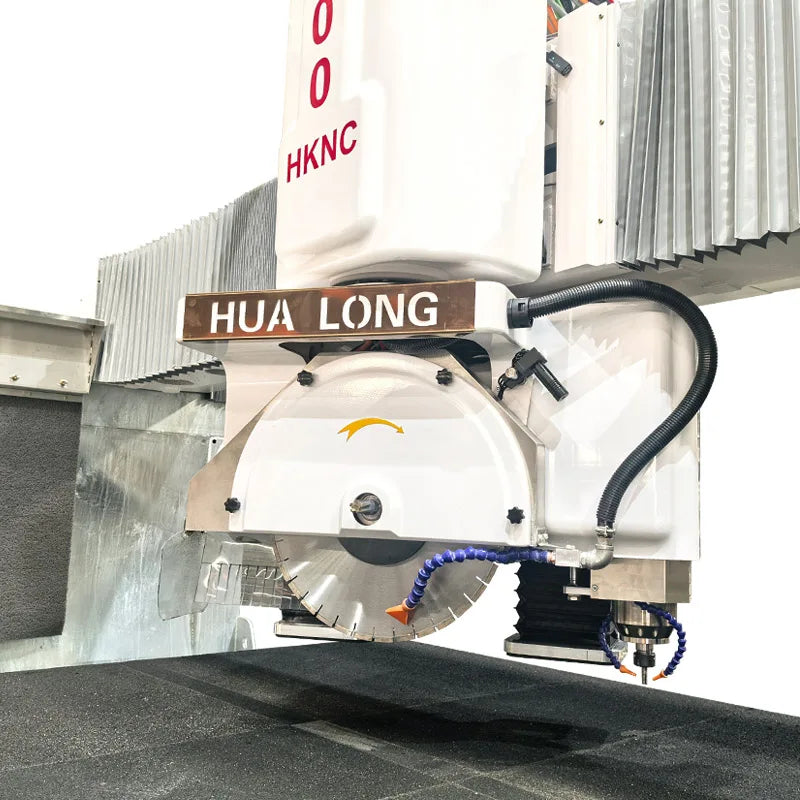

Electro-spindles

of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.

Internal water passage

Galvanization (Optional)

Galvanizing can prevent the immersion of air, water and other corrosive media to steel, improve the corrosion resistance of the machine, enhance mechanical strength, and extend the service life.

Electric Cabinet

Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.

Linear Guide

Brand: Hiwin Original: Taiwan, China

Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.

VR

Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
