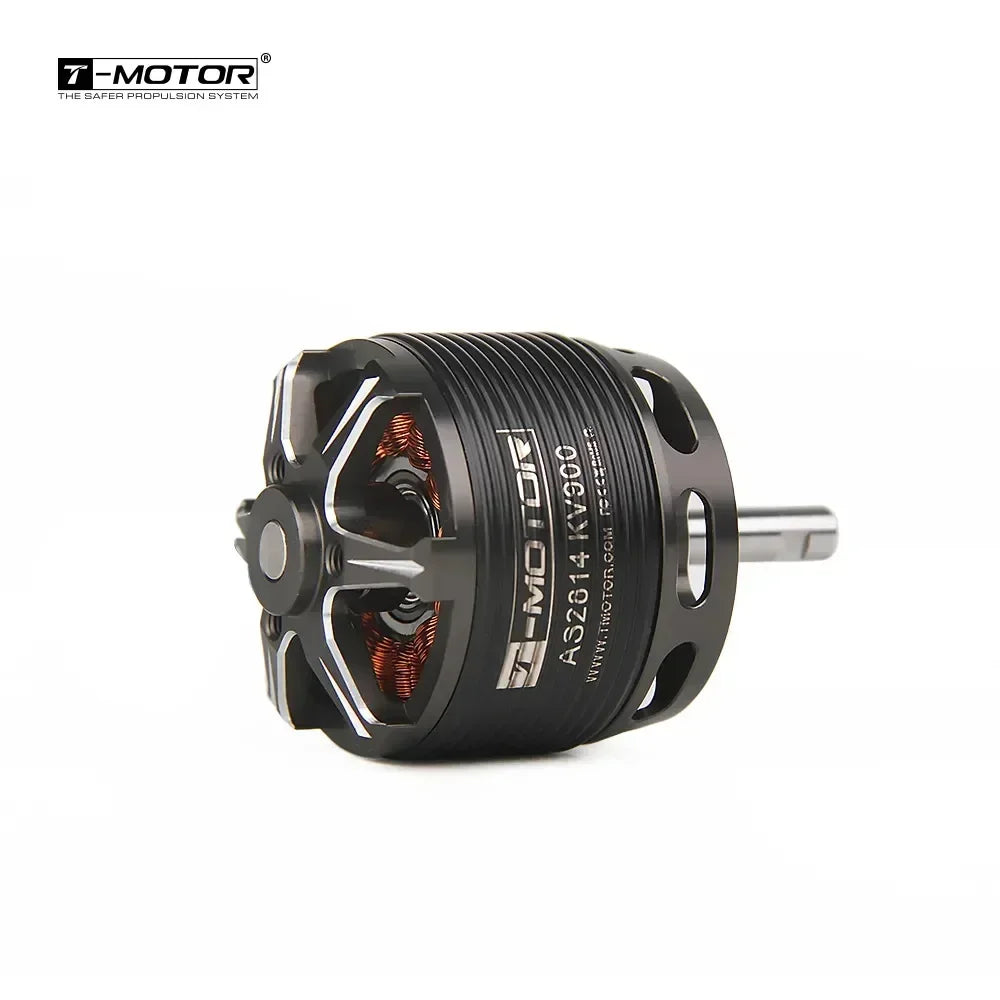

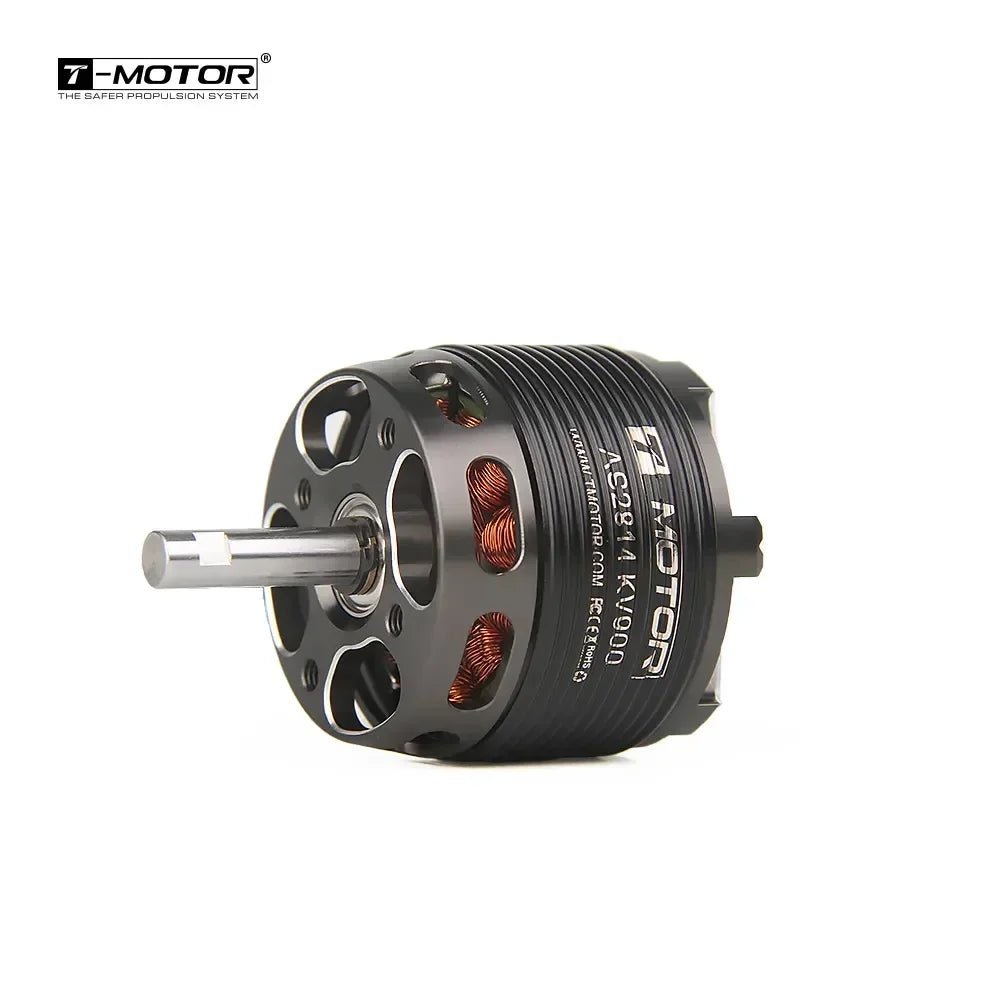

T-MOTOR Hobby AS2814 KV900 KV1050 KV1200 KV2000 Long Shaft Brushless Motor For Airplane Fixed Wing Power Engine
T-MOTOR Hobby AS2814 KV900 KV1050 KV1200 KV2000 Long Shaft Brushless Motor For Airplane Fixed Wing Power Engine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
For Vehicle Type: Airplanes
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: AS2814
Origin: Mainland China
RC Parts & Accs: Motor Components
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
| Test Item | Long Shaft KV900 | Weight (Incl. Cable) | 110g |
| Motor Dimensions | Φ36.2*54.5mm | Internal Resistance | 43.5mΩ |
| Lead | Enameled Wire 100mm | Configuration | 12N14P |
| Shaft Diameter | IN:5mm | Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 1.35A | Peak Current(180s) | 37A |
| Max. Power(180s) | 553W | Recommendation | / |
| Test Item | Long Shaft KV1050 | Weight (Incl. Cable) | 112g |
| Motor Dimensions | Φ36.2*54.5mm | Internal Resistance | 34.6mΩ |
| Lead | Enameled Wire 100mm | Configuration | 12N14P |
| Shaft Diameter | IN:5mm | Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 1.35A | Peak Current(180s) | 49A |
| Max. Power(180s) | 718W | Recommendation | / |
| Test Item | Long Shaft KV1200 | Weight (Incl. Cable) | 112g |
| Motor Dimensions | Φ36.2*54.5mm | Internal Resistance | 25.2mΩ |
| Lead | Enameled Wire 100mm | Configuration | 12N14P |
| Shaft Diameter | IN:5mm | Rated Voltage(Lipo) | 3-4S |
| Idle Current(10V) | 2.21A | Peak Current(180s) | 61A |
| Max. Power(180s) | 885W | Recommendation | / |
