SPECIFICATIONS

Control system: SIEMENS GSK FANUC (optional)

Max speed of spindle (Rpm): 8000mm/min

Max, table load: 600kg

Product type: machining center cnc milling machine

Table size (mm): 900*400

Travel of X axis(mm): 700

Travel of Y axis(mm): 450

Travel of Z axis(mm): 500

Weight: 3500

cnc control system: FANUC

dimension(l*w*h): 2350x2150x2250

key selling points: Competitive Price

machinery test report: Provided

machining capacity: Medium Duty

max. table load(kg): 500

min. time of tool change(s): 2

no. of spindles: 3

place of origin: China

positioning accuracy: 0.01

range of spindle speed: 1 - 8000 r.p.m

rapid feed speed: 10 - 15

repeatability (x/y/z) (mm): 0.005

spindle taper: bt40-150

table size: 900*400mm

table travel (x) (mm): 800

table travel (y) (mm): 450

table travel (z) (mm): 500

tool change time: 7s

tool magazine capacity: 16

type: VERTICAL

video outgoing-inspection: Provided

voltage: 220V/380V

warranty: 1 Year

weight (t): 3

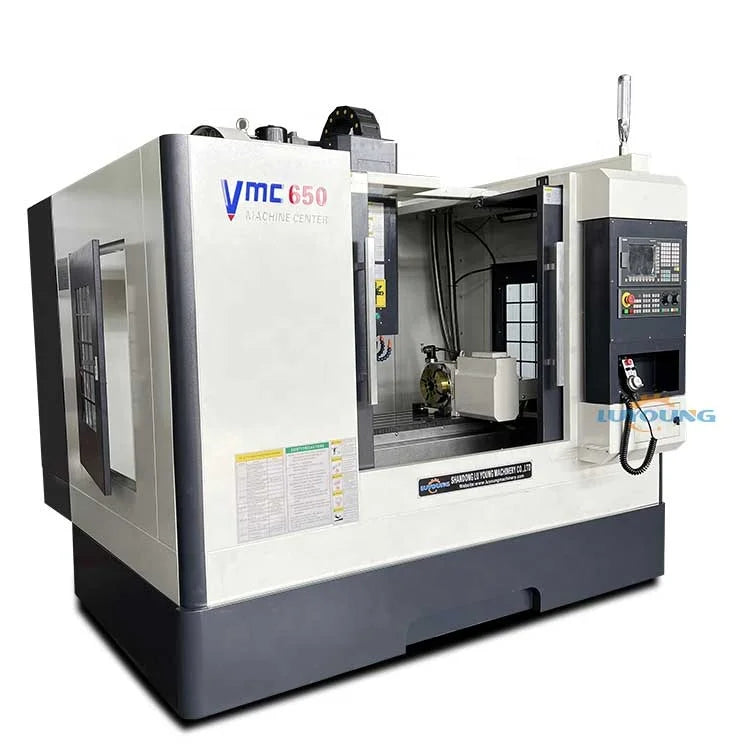

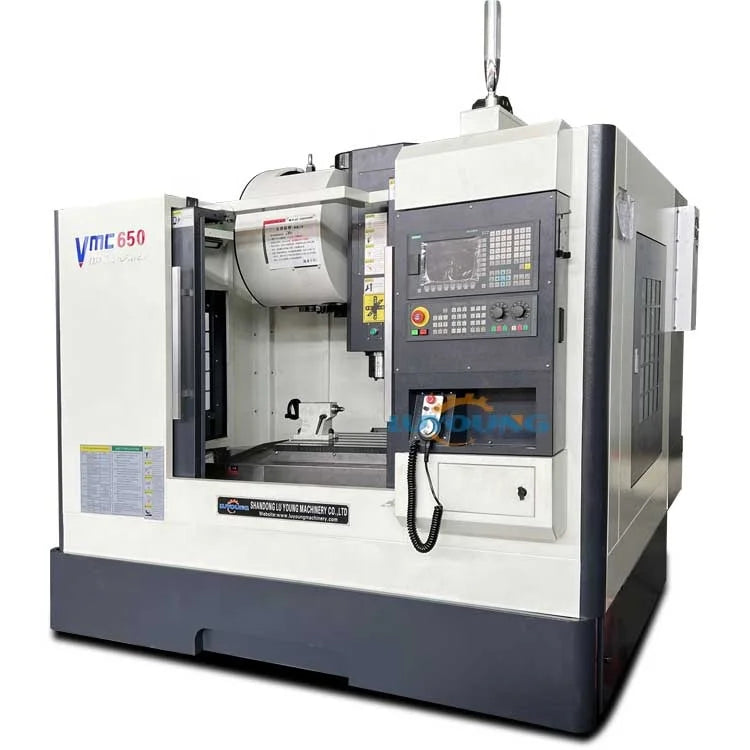

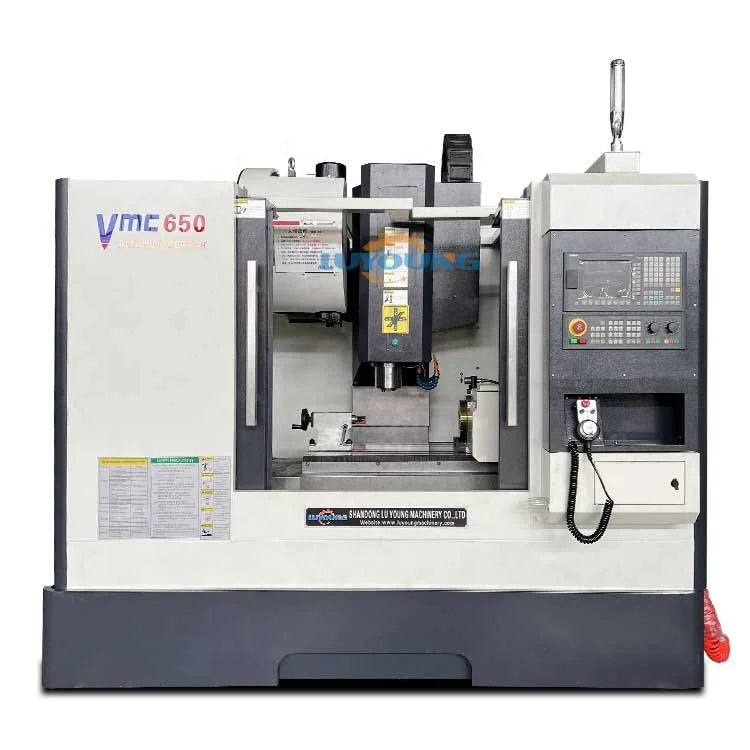

vmc650 machining center cnc milling machine vmc650 3/4/5/axis FANUC control cnc vertical machining center

Specification

Specification of vertical machining center
Item	VMC550L	vmc650	VMC850
Size of worktable(length×width)mm	800×300	900×400mm	1000×500
T slot (mm)	3-14-100	3-18-160	3-18-150
Max loading weight on worktable	300kg	500kg	600kg
X-Axis travel(mm)	600	700	800
Y-Axis travel(mm)	350	450	500
Z-Axis travel(mm)	450	500	500
Distance between spindle nose and table	100 -550mm	120-670mm	150-650mm
Distance between spindle center and column(mm)	370	460	550
Spindle taper	BT40
Max. spindle speed( rpm)	8000/10000
Spindle motor power(Kw)	5.5kw	5.5/7.5kw	7.5/11
Rapid feeding speed: X,Y,Z axis	18/18/16	24/24/18mm(linear guide way)	24(linear guide way)
Fast cutting speed mm /min	5m/min	10m/min	16m/min
Positional accuracy	±0.01 mm
Repeat positional accuracy	±0.005 mm
Tool changer type	16 tools head type tool changer
Max. tool length	300mm
Max. Tool diameter	Φ80(adjacent tool)/φ150(not adjacent tool)
Max.tool weight	8kg
Tool changing time(tool-to-tool)	7sec
Air pressure	0.6 Mpa
Voltage /frequency	380 V 50HZ
Total capacity	10KVA
Machine weight	2700KG	4000KG	5100KG
Overall sizse(mm)	2200×1750×2300 mm	2350×2150×2250mm	2700*2250*2700

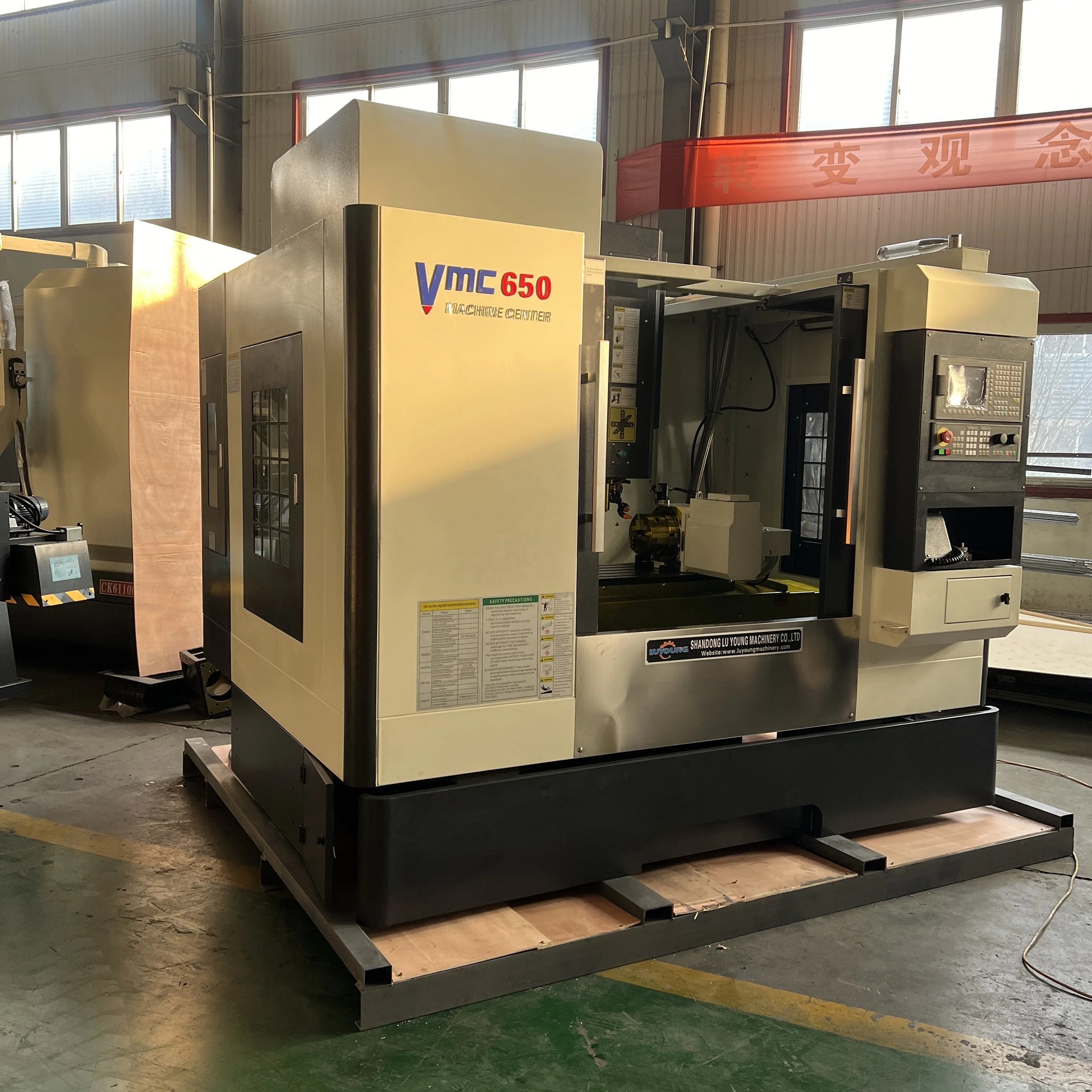

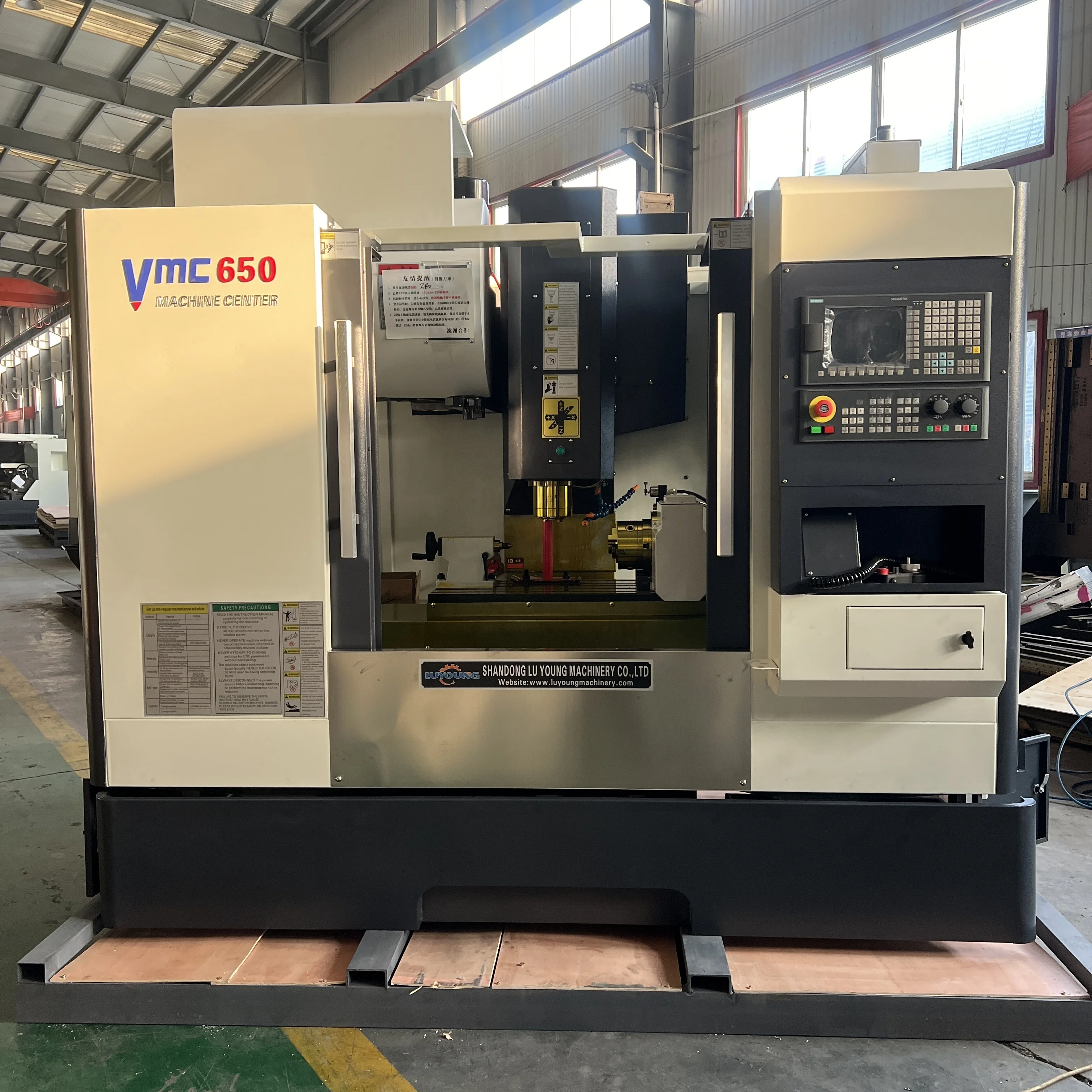

Product Description

The vmc650 machining center cnc milling machine vmc650 3/4/5/axis FANUC control cnc vertical machining center , automatic lubricating system,cooling system, totally enclosed protective cover, automatic chip removal device (optional) etc.The machine has the X, Y, Z three axis linkage, in a clamping can finish milling, drilling, boring, expanding continuously, hinge, such as the internal and external screw thread processing a variety of rough and finish machining process, is suitable for processing all
kinds of high precision, working procedure, shape more complex parts, to provide users with complex parts processing and quick, perfect integrationsolutions.
The VMC650 of feed shaft for X, Y, Z three coordinate control,three axis through the servo motor drive, can achieve for a variety of plate, plate and shell, a complex parts, such as CAM, mold clamping, complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties,small batch parts production, for complex, high precision parts processing and more shows its superiority.

Application

The machining center is suitable for parts that are complex, have many processes and require high precision. They require multiple types of ordinary machine tools, numerous tools and tooling, and multiple clamping and adjustments to complete the processing. Its main processing objects include the following four categories. (1) Box parts Box parts generally refer to parts with multiple hole systems, a cavity inside, and a certain proportion in the length, width, and height directions. Such parts are widely used in machine tools, automobiles, aircraft and other industries, such as automobile engine blocks, transmission cases, machine tool headstocks and axle boxes, diesel engine blocks, gear pump casings, etc. (2) Complex surface Like CNC milling machines, machining centers are also suitable for processing complex curved surfaces, such as aircraft, automobile parts, impellers, propellers, various curved surface forming molds, etc. (3) Special-shaped parts Special-shaped parts are parts with irregular shapes. Most of them require mixed processing of points, lines, and surfaces, such as brackets, bases, templates, masters, brackets, etc. (4) Disks, sleeves, and plate parts Disc sleeves or shaft parts with keyways or radial holes, or distributed hole systems on the end face and curved surfaces, such as flange sleeves, shaft parts with keyways or square heads, etc.: have more holes to process Plate parts, such as various motor covers, etc.

Product Feature

1.vmc650 machining center cnc milling machine vmc650 3/4/5/axis FANUC control cnc vertical machining center Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth. The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2.VMC650 3 axis vertical machine centerAll M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. VMC650 Vertical machine center Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.
7.VMC650 Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation.

Optional configuraton:

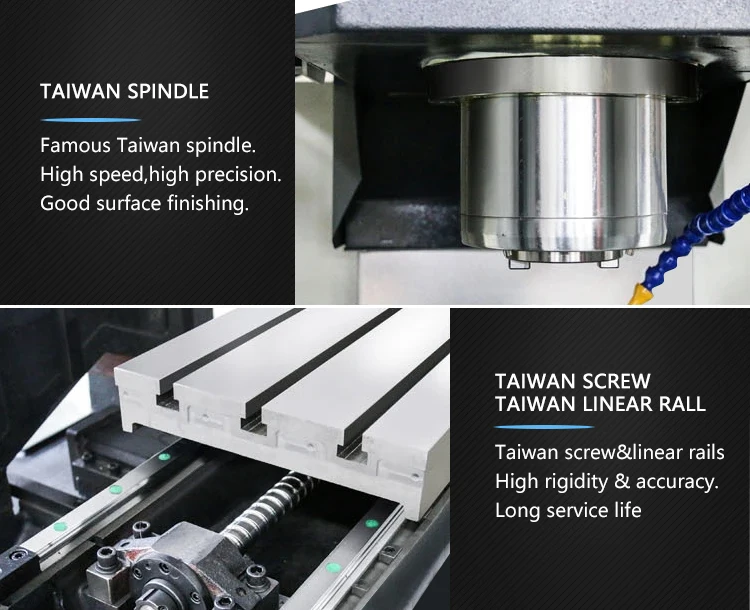

Spindle: Standard is high speed BT40-150 belt driven Taiwan spindle---8000RPM; Optional is 10000/12000/15000 rpm .simple and compact structure, high efficiency, low noise, low vibration , high precision,and good surface finishing.

Screw:Standard is hardened guide way,optional is Taiwan Hiwin linear guide way.The guide screw adopts the imported JIS-C3 grinding grade pre-stretched nut screw to eliminate the backlash, after heat treatment, it has good rigidity, wear resistance, and guarantees the high precision of the operation.

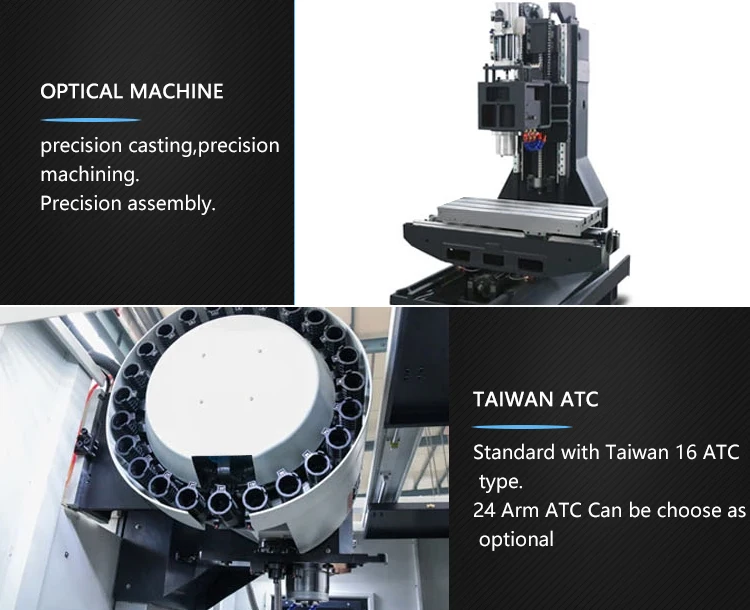

Auto tool changer:

Taiwan hat type (16 knives) tool magazine. Advantages: low wear, long life, easy adjustment, and low failure rate.Optional configuration is Taiwan 20/24 disc type Auto tool changer.

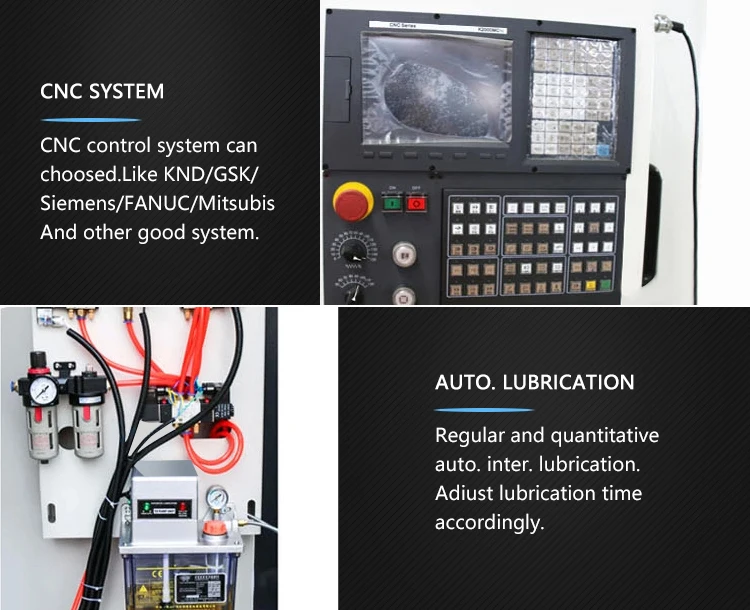

Controller system

Controller system: there is GSK /KND/SIEMENS/SYNTEC/FANUC controller system could to be choosed

4th and 5th axis :

4th and 5th axis can be choosed as opintional,Horizontal & vertical cnc rotary table can be choose as optional. Especially for special jobs.High precision, improve processing efficiency, and shorten the processing flow.

PROBE MEASURING

METROL , RENISHAW or PIONEER brand workpiece measuring system and tool measuring system are optional configurations.

Chip conveyor outside machine

The machine tool chip conveyor is mainly used to collect various metal and non-metal scraps produced by the machine and transfer the scraps to the collection vehicle. It can be used in conjunction with the filter water tank to recycle various coolants.

24 tools arm type Auto tool changer

The tool change speed is fast, within 4s. The mechanical arm pulls the tool from the tool magazine and the spindle at the same time and installs it on the spindle and the tool magazine after a 180° rotation to complete the tool change process.

Company Profile

Company specializing in CNC machinery research and development in 20 years, we have good technology, and advanced team, to provide efficient service, for the ball more than 40 countries research and development, production, sales of the company.CNC lathe, CNC milling machine, machining center
Our company has independently developed a series of numerical control lathes for CK0620, CK6130 and CK6132, and has established a large number of special machine tools for many enterprises, whose products are reliable.Price discount, deeply loved by new and
old customers.High-quality finished products, perfect pre-sales and after-sales service, is our company's quality purpose, is the pursuit of all employees of our company, is also the guarantee of the majority of users' trust.

Packing & Delivery

Exhibition

Our service

FAQ

How long is your warranty period?

A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.

What kind of packing do you have?

Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.

How long will your delivery date be?

A: our delivery date is one month.30 days

vmc650 machining center cnc milling machine vmc650 3/4/5/axis FANUC control cnc vertical machining center can be customized?

A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you,we can also design and produce the machine meet your requirements.

How can I contact you?

Through cell phone number and QQ, there is also email contact.
